Description
DC powered driven refrigeration unit
DC powered driven refrigeration unit (12V/24V/48V/72V/96V etc.)
Environmental Protection
Green and Environmental Protection
Compressor design
Rooftop Mounted unit and build-in DC compressor design
Cooling fast
Strong refrigerating, cooling fast
Quick installation
Quick installation, simple maintenance and low maintenance cost
Refrigerated vans & electric cargo vehicles
Apply to all kinds of small refrigerated vans & electric cargo vehicles
Parameter
Model | D400 | ||
Temperature rating in container | -15℃～+25℃ | ||
Cooling capacity | -5℃ | 1620W | |
-10℃ | 1450W | ||
Driven method | Split & front mounted and battery driven unit, build-in DC compressor | ||
Compressor voltage | DC12V / 24V / 48V / 60V / 72V etc. | ||
Control voltage | DC12V / DC24V | ||
Suitable refrigerated cargo box (m3) | 8~ 12m³ | ||

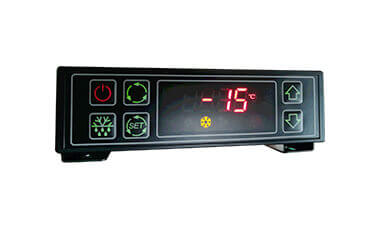

Controller | Electronic digital controller | ||
Build-in Compressor | 15cc/r, 18cc/r, or 26cc/r | ||
Refrigerant | R134a/R404a, 1.5 ~1.7kg | ||
Heating function | Optional | ||
Defrosting function | R404a Hot gas defrost (Auto./ Man.) | ||
Dimensions (mm) | Evaporator | 1020×648×220 | |
Condenser | 1178×585×403 | ||
Applicable refrigerated truck body | 2.9 ~ 4.2m | ||
Video
AC10B, bus air conditioner - edison
AC11 bus air conditioner
RC580B-000 condenser assembly assembly
RC580B-000 condenser assembly assembly
RC580B-000 condenser assembly assembly
RC580B-000 condenser assembly assembly
Purchase guide
When selecting a transport refrigeration unit, be sure to select the right transport refrigeration unit based on the cooling space and cargos. And battery capacity for DC powered refrigeration units.
Transport refrigeration unit must match with suitable refrigerated volume. Also, The loaded cargo should match the suitable refrigeration unit，such as: Vegetables, cold meat, medicines, electronic products, etc.
And inform the producer, truck body conditions, refrigerated truck models, truck engine type and the required temperature.
Based on the above information, we will recommend the relevant refrigeration equipment.
Our sales person with sufficient experience will recommend the suitable truck refrigeration unit.
